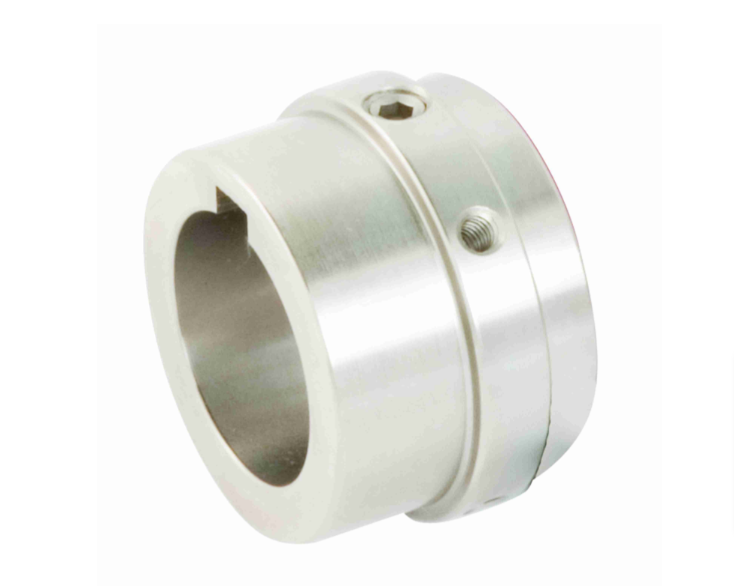

10 HSB x 7/8 Omega
10 HSB, .875 B 3/16 X 3/32 KW 1SS, 7385821, 10287552
This product has no valid combination.
| Series: Hubs |
| Product: Omega Hubs |
| Coupling Size: 10 |
| Coupling Type: Elastomeric |
| Hub Barrel Outside Diameter (in): 3.3 |
| Hub Length (in): 1.88 |
| Hub Style: Standard Bore (HSB) |
| Hub Material: Steel |
| Hub Bore Fit: Clearance |
| Hub Shoulder Diameter (in): 3.65 |
| Hub Straight Bore Diameter [Max] (in): 0.876 |
| Hub Straight Bore Diameter [Min] (in): 0.875 |
| Number of Keyways: 1 |
| Number of Set Screws: 1 |
| Hub Straight Bore Diameter [Nom] (in): 0.875 |
| Keyway Depth (in): 0.0938 |
| Keyway Width (in): 0.1875 |
